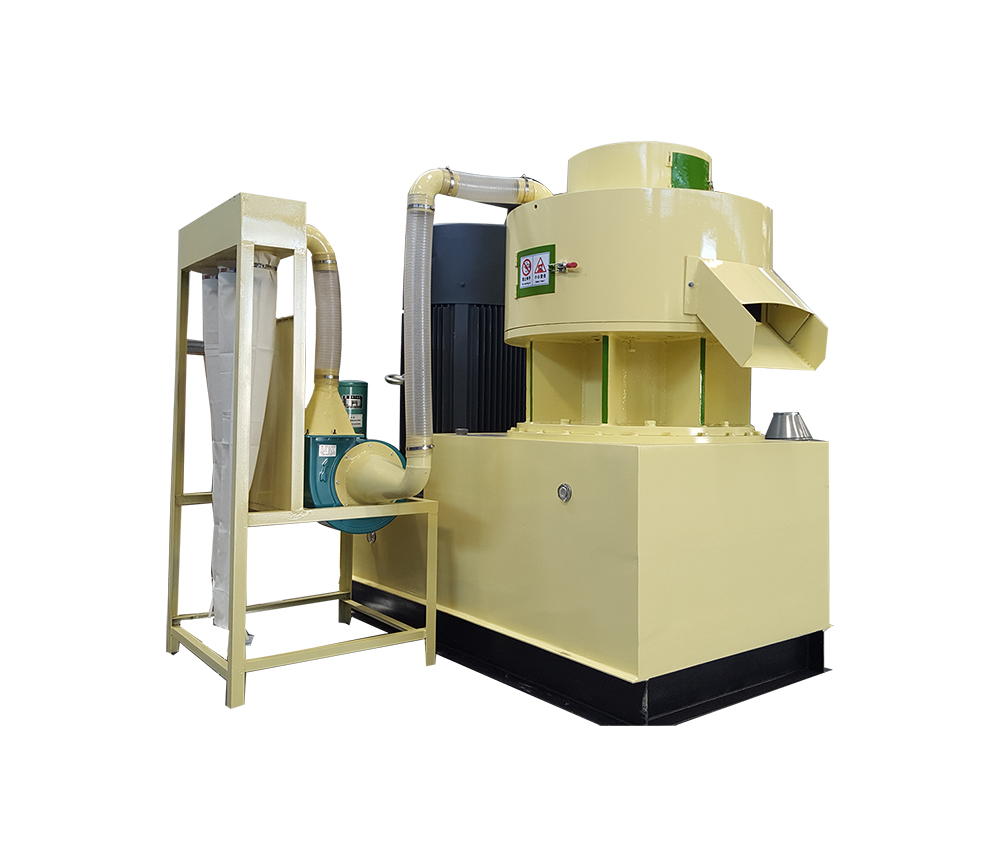

Industrial Pellet Machine
Suitable used for the small pellet production line or industrial pellet plant. Details, as follows:
MODEL NO. |
OUTPUT (Ton/Hour) |
Power(Kw) |
PELLET DIAMETER(mm) |
SIZE(mm) |
WEIGHT(Kg) |
KN-D-350 |
0.35-0.5 |
30 |
6-15mm |
1400*700*1600 |
900 |
KN-D-450 |
0.6-0.7 |
37 |
6-20mm |
1500*750*1650 |
1300 |
KN-D-550 |
0.8-1 |
45 |
6-25mm |
1600*800*1750 |
1600 |
We also have the KN-D-800 with 90Kw power and the KN-D-1000 with 110 power of big flat die series wood pellet machine. However, compared with the vertical ring die pellet mill, if the capacity you wanted is bigger than 800kg/h, we are recommend our Vertical ring die pellet mill to you. Details, as follows:
MODEL NO. |
OUTPUT (Ton/Hour) |
Power(Kw) |
PELLET DIAMETER(mm) |
SIZE(mm) |
Weight(kg) |
KN-SD-450 |
0.8-1.2 |
55 |
6-12mm |
1400*750*1550 |
2800 |
KN-SD-550 |
1.5-2 |
90 |
6-12mm |
1900*950*1800 |
4500 |
KN-SD-800 |
2-3 |
160 |
6-12mm |
2500*1350*2100 |
7000 |
KN-SD-1000 |
3-4 |
200 |
6-12mm |
2650*1450*2100 |
8500 |
Our wood pellet machine with the automatic lubricating system and the cooling and dedusting system
1 |
Automatic lubricating system can be used to ensure continue working in 24 hours per day. |
|
|
- |
Automatic lubricating system for gear box |
|
- |
Automatic lubricating system for rollers |
2 |
Cooling and dedusting system: |
|
|
- |
Reduce the temperature of wood pellet machine's working space, the wood pellet machine will working more stable. |
|
- |
Remove the dust and water vapour, ensure the good quality of final pellets with low moisture. |
|
- |
Greatly improve working environment for workers. |
